Base class for implementation specific graph library. More...

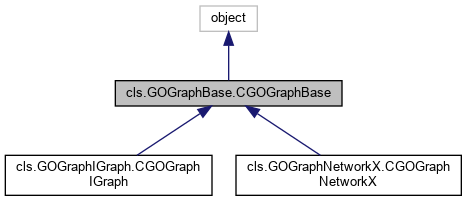

Inheritance diagram for cls.GOGraphBase.CGOGraphBase:

[legend]

Collaboration diagram for cls.GOGraphBase.CGOGraphBase:

Public Member Functions
def	__init__ (s)
	Initialize the internal graph implementation. More...

def	GetRoot (s)
	Get the root data node. More...

def	GetAllNodes (s)
	Get all data nodes. More...

def	GetAncestors (s, goID, include=True)
	Get ancestor nodes for a certain node. More...

def	GetAllAncestors (s, include=True)
	Get ancestor nodes for all nodes in the graph. More...

def	GetChildren (s, goID, include=True)
	Get child nodes for a certain node. More...

def	GetDistance (s, srcGOID, dstGOID)
	Get the shortest distance between two nodes. More...

def	IgnoreRelationships (s, is_a=False, regulates=False, part_of=False, positively_regulates=False, negatively_regulates=False)
	Do not take into account certain relationships. More...

def	SetCountsFromAC (s, ac)
	Populate graph with counts from an annotation corpus. More...

def	UpdateNode (s, goID)
	Transfer content of data node to the internal graph. More...

def	UpdateAllNodes (s)
	Transfer content of all data nodes to the internal graph. More...

def	ReadGraphML (s, ffn)
	Read a graphml-formatted gene ontology from a file. More...

def	WriteGraphML (s, ffn)
	Write the graph to a file. More...

def	ReadOBO (s, ffn)
	Read an OBO-formatted gene ontology from file. More...

def	IsPopulated (s)
	Has the graph been populated? More...

Detailed Description

Base class for implementation specific graph library.

Defines the API to keep away from the caller the implementation details of
the underlying graph library. Handles access to nodes and provides vital
access methods for implementing semantic similarity measures without
deep knowledge of the underlying graph. Conceptionally, we use a Python
data object to hold all relevant data for semnatic similarity computation,
which is attached to the internal graph's nodes. This data node is used to
represent graph nodes outside of the graph. Data nodes can be altered
outside this class, the changes will be reflected in the internal graph.

Terminology:

- @b GO @b ID. GO identifier as used by the Gene Ontology, eg @c GO:0006865.
- @b Term @b name. GO term name, eg 'amino acid transport'.
- @b Root. The root is the most unspecific annotation. All nodes' paths
  will end up at the root. This is due to the directionality of the GO
  graph.
- @b Ancestors. Nodes that are less specific and are on a path from the
  node to the root.
- @b Data @b node. A node attached to the implementation specific graph
  node that carries all relevant information used for semantic similarity
  computing.
- @b Populated. At least one node has a count that is non-zero. A graph
  becomes populated if an annotation corpus has been attached to it.
- @b Node @b count. Number of proteins that have been associated with a
  particular node.
- @b Normalization. Process of computing probabilities and information
  content. Must be done after attaching an annotation corpus or after
  loading a populated graph.
- @b Node @b frequency. Number of proteins that have been annotated with
  this GO ID or a more specific one.
- @b Node @b probability. Node frequency / Root node frequency.

Constructor & Destructor Documentation

◆ init()

def cls.GOGraphBase.CGOGraphBase.__init__ ( s )

Initialize the internal graph implementation.

    Internal graph object is stored in @c self.G and may be accessed from
    the outside.

Member Function Documentation

◆ GetAllAncestors()

def cls.GOGraphBase.CGOGraphBase.GetAllAncestors	(	s,
		include = `True`
	)

Get ancestor nodes for all nodes in the graph.

    @param include (@c Bool) Indicates whether to include the start data
     node (@c True) or not (@c False).
    @return A @c Dictionary. Key is the GO ID, and its value is a @c list
    of references to @ref cls.GOGraphNode.CGOGraphNode

Reimplemented in cls.GOGraphNetworkX.CGOGraphNetworkX, and cls.GOGraphIGraph.CGOGraphIGraph.

◆ GetAllNodes()

def cls.GOGraphBase.CGOGraphBase.GetAllNodes ( s )

Get all data nodes.

    @return A @c List of references to @ref cls.GOGraphNode.CGOGraphNode
    instances. By this way, data can be accessed and modified and remains
    attached to the graph.

Reimplemented in cls.GOGraphNetworkX.CGOGraphNetworkX, and cls.GOGraphIGraph.CGOGraphIGraph.

◆ GetAncestors()

def cls.GOGraphBase.CGOGraphBase.GetAncestors	(	s,
		goID,
		include = `True`
	)

Get ancestor nodes for a certain node.

    @param goID  (@c String) GO ID, eg. 'GO:0006865'.
    @param include (@c Bool) Indicates whether to include the start data
     node (@c True) or not (@c False).
    @return A @c List of references to @ref cls.GOGraphNode.CGOGraphNode.
     This list is empty if @c goID was not found.

Reimplemented in cls.GOGraphNetworkX.CGOGraphNetworkX, and cls.GOGraphIGraph.CGOGraphIGraph.

◆ GetChildren()

def cls.GOGraphBase.CGOGraphBase.GetChildren	(	s,
		goID,
		include = `True`
	)

Get child nodes for a certain node.

    @param goID  (@c String) GO ID, eg. 'GO:0006915'.
    @param include (@c Bool) Indicates whether to include the start data
     node (@c True) or not (@c False).
    @return A @c List of references to @ref cls.GOGraphNode.CGOGraphNode
     This list is empty if @c goID was not found.

Reimplemented in cls.GOGraphNetworkX.CGOGraphNetworkX, and cls.GOGraphIGraph.CGOGraphIGraph.

◆ GetDistance()

def cls.GOGraphBase.CGOGraphBase.GetDistance	(	s,
		srcGOID,
		dstGOID
	)

Get the shortest distance between two nodes.

    Notice that the graph is directed and that edges emerge from more
    specific nodes to less specific nodes. See the example GO IDs below.
    @param srcGOID (@c String) Source GO ID, eg. 'GO:0006860'.
    @param dstGOID (@c String) Destination GO ID, eg. 'GO:0008150'.
    @return The number of edges of the shortest path from the source to
     the destination node. This number equals -1, if any of the two GO
     IDs is not present in the graph.

Reimplemented in cls.GOGraphNetworkX.CGOGraphNetworkX, and cls.GOGraphIGraph.CGOGraphIGraph.

◆ GetRoot()

def cls.GOGraphBase.CGOGraphBase.GetRoot ( s )

Get the root data node.

    The root node is the most general term and eventually each node ends
    up in the root node when traveling along the graph's edges.
    @return @ref cls.GOGraphNode.CGOGraphNode instance of the root.

Reimplemented in cls.GOGraphNetworkX.CGOGraphNetworkX, and cls.GOGraphIGraph.CGOGraphIGraph.

◆ IgnoreRelationships()

def cls.GOGraphBase.CGOGraphBase.IgnoreRelationships	(	s,
		is_a = `False`,
		regulates = `False`,
		part_of = `False`,
		positively_regulates = `False`,
		negatively_regulates = `False`
	)

Do not take into account certain relationships.

    @b Removes from the graph the edges marked with the relationships
    indicated by the parameters listed below. @b Attention: Then the
    graph is saved, these edges will be missing.

Reimplemented in cls.GOGraphNetworkX.CGOGraphNetworkX, and cls.GOGraphIGraph.CGOGraphIGraph.

◆ IsPopulated()

def cls.GOGraphBase.CGOGraphBase.IsPopulated ( s )

Has the graph been populated?

    A graph is considered to be populated, if some of its nodes are
    associated with counts greater than zero. This also means that the
    root will have a non-zero frequency.
    @return (@c Bool) @c True, the graph has been populated. @c False, the
     graph is still empty in terms of counts.

◆ ReadGraphML()

def cls.GOGraphBase.CGOGraphBase.ReadGraphML	(	s,
		ffn
	)

Read a graphml-formatted gene ontology from a file.

    Loads a graphml-formatted file into this object. The graph represents
    the ontology and may have only nodes with @c id and @c name vertex
    attributes, but it can in addition be furnished with @c cnt and @c
    freq attributes. The latter is a shortcut to avoid reading an
    annotation corpus and populating the graph.
    @param ffn  Full path file name.
    @return (@c Bool) @c True, if the graph was read successfully. @c
     False, if the file could not be opened.

Reimplemented in cls.GOGraphNetworkX.CGOGraphNetworkX, and cls.GOGraphIGraph.CGOGraphIGraph.

◆ ReadOBO()

def cls.GOGraphBase.CGOGraphBase.ReadOBO	(	s,
		ffn
	)

Read an OBO-formatted gene ontology from file.

    @return (@c Bool) @c True, if the graph was read successfully. @c
     False, if the file could not be opened.

◆ SetCountsFromAC()

def cls.GOGraphBase.CGOGraphBase.SetCountsFromAC	(	s,
		ac
	)

Populate graph with counts from an annotation corpus.

    The annotation corpus delivers information how many GO IDs are
    associated with proteins. For each GO ID, the number of associated
    proteins is added to each of the ancestor nodes. After completion,
    the graph is normalized by _Normalize and is ready for semantic
    similarity calculations.
    @param ac  @ref cls.AnnotationCorpus.CAnnotationCorpus instance.
    @return (@c Bool) @c False, if the annotation corpus name does not
     match the ontology's root name defined by the graph. An error message
     is written. @c True, if the graph has been populated successfully.

Reimplemented in cls.GOGraphNetworkX.CGOGraphNetworkX, and cls.GOGraphIGraph.CGOGraphIGraph.

◆ UpdateAllNodes()

def cls.GOGraphBase.CGOGraphBase.UpdateAllNodes ( s )

Transfer content of all data nodes to the internal graph.

    See @ref UpdateNode.

Reimplemented in cls.GOGraphNetworkX.CGOGraphNetworkX, and cls.GOGraphIGraph.CGOGraphIGraph.

◆ UpdateNode()

def cls.GOGraphBase.CGOGraphBase.UpdateNode	(	s,
		goID
	)

Transfer content of data node to the internal graph.

    Data is made persistent by transferring the content of the attached
    data node to the internal graph data structure. By this, information
    will be saved to files when writing graphs. Currently, the following
    information is transferred:
    - GO ID as @c id.
    - Term name as @c name.
    - GO ID-associated protein counts as @c count.
    - Frequency of occurrence of this node or any more specialized nodes
      as @c freq.
    @param goID  (@c String) GO ID, eg. 'GO:0006865'.

Reimplemented in cls.GOGraphIGraph.CGOGraphIGraph.

◆ WriteGraphML()

def cls.GOGraphBase.CGOGraphBase.WriteGraphML	(	s,
		ffn
	)

Write the graph to a file.

    Writes the graph to a file using the internal node and edge
    attributes. Since data nodes may have changed after reading, a call to
    @ref UpdateAllNodes is performed here as an operation common to all
    subclasses. Currently, the exactly those attributes listed in @ref
    UpdateAllNodes are written to the graph file.
    @param ffn  Full path file name.
    @return (@c Bool) @c True, if the graph was read successfully. @c
     False, if the file could not be opened.

Reimplemented in cls.GOGraphNetworkX.CGOGraphNetworkX, and cls.GOGraphIGraph.CGOGraphIGraph.

The documentation for this class was generated from the following file:

cls/GOGraphBase.py
